A site plan often referred to as a plot plan can be defined as a type of diagram used by landscape architects, engineers, urban planners, and designers which demonstrates current and proposed conditions for the particular space. It is normally a lot of land or plot which is to be adjusted. Site plan design plays an important role to improve your land or property. It incorporates the setting of the existing and proposed buildings such as the utilization of land, paving, and many more. A good site plan must indicate the location of your property lines corresponding to the existing and proposed buildings, parking, or various site characteristics. In California, professional architects and designers use Auto-cad design software for better outcomes. In this article, we will break down the essential elements of site plan design, its purpose, requirement, and importance of designing a perfect site plan.



Site Plan Design is a precisely-scaled illustration that displays the existing situations and proposed developments to the property. It shows the structure layout, plan, and construction of structures, buildings, and paving on a particular site in a manner that safeguards the public’s interest in security and economy. Furthermore, it also ensures the protection of occupants from some potential bad results of site construction. Flooding, erosion, obstruction of scenic views, light glare, noise, traffic hazards, contamination, traffic, drowning, trash, or aesthetic complications sometimes upset the space adjacent to construction.

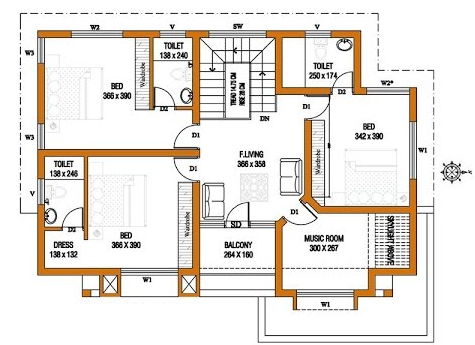

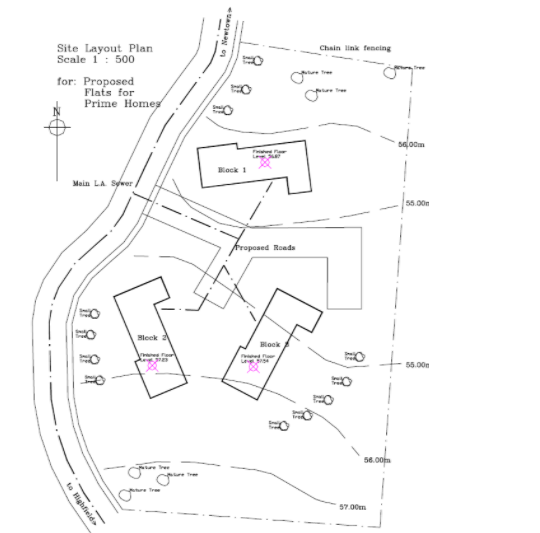

site plan design

Essential Elements for Perfect Site Plan Design

Some essential elements are required to be taken into consideration to obtain a perfect and accurate site plan. Here, we will discuss some guidelines and procedures that a good site plan must follow. These essential characteristics are mandatory to include while designing a site plan.

  1. Name and Location: For a good site plan design, you must include your name along with your location on your site plan. They are considered to be the fundamental elements of any site plan.
  1. Legal Information and Detail: Your site plan must include legal information such as your budget, your community, your section, and your city.
  2. Scaling Factor: Scaling factor is one of the major considerations to design a faultless site plan. You must ensure that your site plan design must be drawn using accurate scaling and measurement.
  1. Cardinal Points:  A good site plan must include the 4 essential cardinal points or directions to represent how the land is oriented.
  1. Site details and Property Lines: Your site plan must incorporate the location of all the adjacent roads and streets leading from public places to a building. Property lines are also obligatory to be included in your site plan.
  1. Existing and Proposed Structures: A perfect site plan must include both the existing and the proposed structures.
  1. Standard Laws and Regulations: A site plan must be developed as per the standard rules and principles prescribed by the building codes of the area.

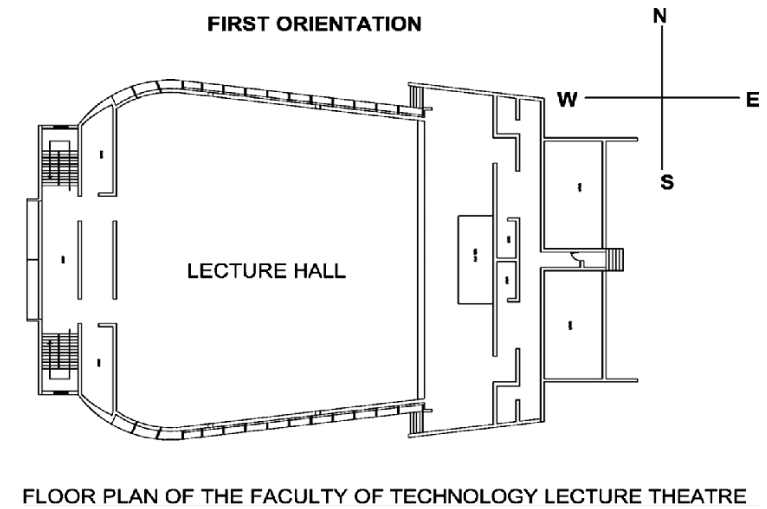

floor plan

Purpose of a Site Plan Design

The major purpose of a site plan is to display the precise way that the proposed property utilization relates to the characteristics of a lot and its adjacent region. It will help to guarantee that how to improve your land by possibly adding various features that fall within current imposing codes and regulations. Another imperative feature of a plot plan or a site plan is that it confirms that local services, for instance, schools, water, sewers, and emergency services are sufficient for what you are intended to build. Acquiescence with zoning will likewise help to guarantee that you are less probable to experience lawsuits or claims to inappropriate land utilization.

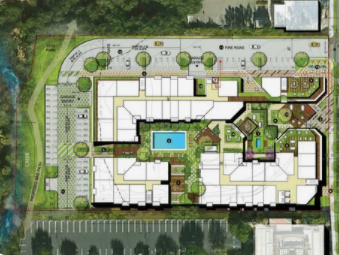

site plan

Importance of a Site Plan Design

Site Plan Design plays a significant role in building construction or development. It exemplifies the layout, covering, and other significant aspects of the site. Before making a site plan design, you need to understand the features of a site. Some physical site constraints include site location, boundary configuration, site access for automobiles and pedestrians, and slope.

Additionally, you must analyze the range of temperature, dampness, solar access, and prevailing light air. Other legal features prevailing site development, for example, the site of services and public easements along with specific principles concerning the type of improvement that is acceptable, site cover, structure impediments from the site borders, building fencing, and altitude all need to be assumed.

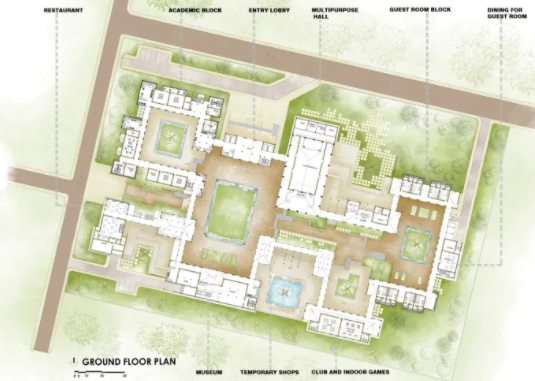

site plan


By concluding this article, site plan design is a perfectly-scaled drawing or graphical representation of the structural layout. Expert and qualified architects, engineers, and designers used specialized design software AutoCAD to draw an accurate and precise site plan design. In California, the architects and engineers must follow complete guidelines and principles enforced by the local building codes of the area to avoid any future complications and loss of property.
