MEP Townhome

MEP and Fire Sprinkler System Design for 5 Two-Story Townhomes in Dallas, TX

InnoDez provided MEP Design and Fire Sprinkler System Design for five 2-story townhomes in  2319 Shea Rd, Dallas, TX 75235.

It consists of 5 ADUs two stories each.

For the Mechanical:

  • Manual J has been done on Wrighsoft Software which is approved by ACCA and IRC.
  • One Gas Furnace was selected for each unit to cover both main and second floor by the means of 10 inch ceiling ducting between the truss.
  • Datasheet were provided and equipment schedule along with exhaust fan for each toilet.

For the Plumbing:

  • Each Home has been provided with one water meter and one gas meter.
  • Water Heater was selected to be Gas Tankless with a capacity of 200 MBH.
  • Fire Sprinkler system has been designed based on NFPA 13-D and Fire Elite Hydraulic Calculation.
  • Isometric drawing for Gas has been done and pipe size has been selected on the longest run based on the IFC.

For the Electrical:

  • Lighting fixtures have been selected to match with the reflected ceiling.
  • Receptacle has been provided based on NEC2017 configuration and minimum distance between the receptacles.
  • Panel board has been selected for each house with a 100 A MCB, 208/120, 3 Phase system voltage.

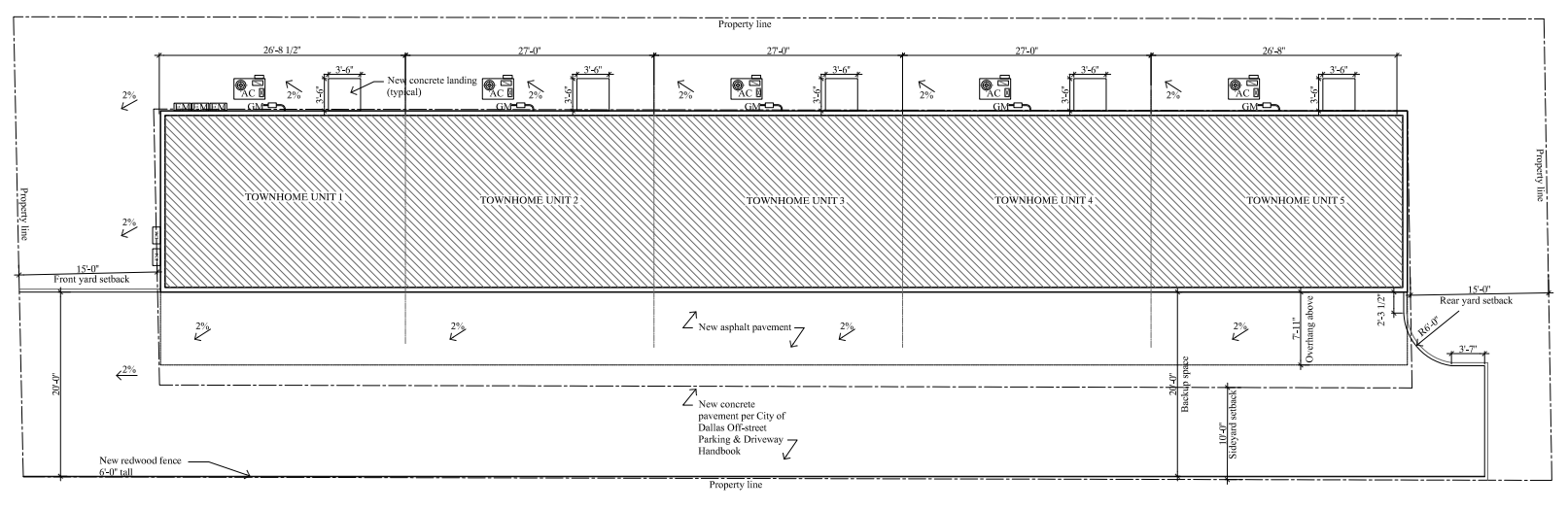

MEP Design Townhomes Dallas Texas
